Solid Edge Design Configurator

Solid Edge® Design Configurator delivers powerful design automation capabilities within the Solid Edge environment. This design automation application adds rule-based automation to the familiar Solid Edge mechanical design environment. Completely embedded in Solid Edge, it enables quick customization of products based on design parameters and rules, boosting your productivity and design speed.

Try Solid Edge for free

Capabilities

Create customized designs at the click of a button

Boost productivity and design speed

Capture engineering rules and parameters that drive a product’s design to automate the order engineering process. This allows more time for product innovation. Configuration rules are defined in Solid Edge, using a step-by-step guided process without the need for programming knowledge.

Quickly design to customer specifications

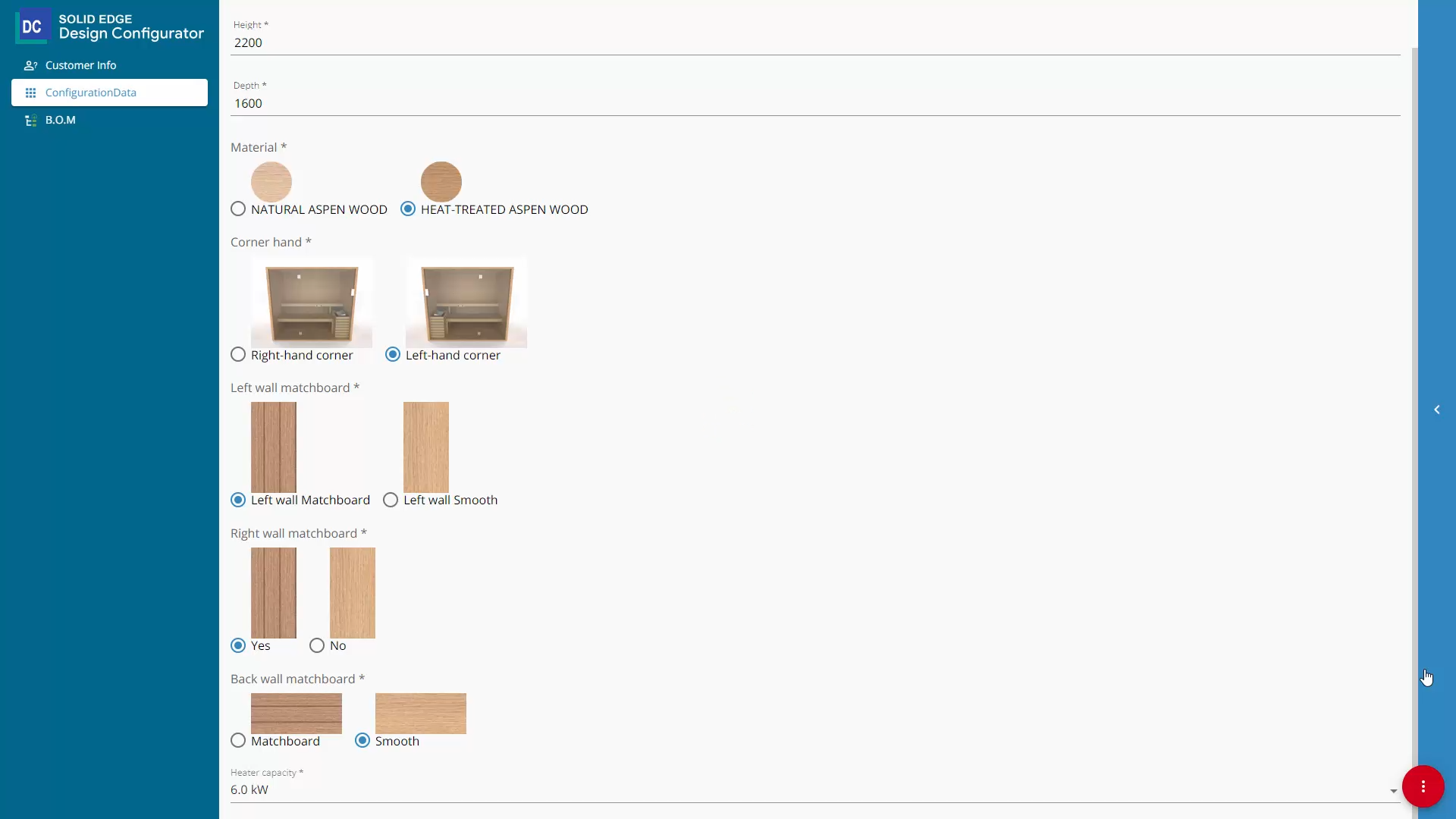

Rapidly design products to customer specification while eliminating expensive errors inherent in manual design customization. Generate new designs without leaving the Solid Edge design environment using a graphical user interface. Rules certify valid product selections.

Automate sales engineering process

Automate key components of the sales engineering process, providing related outputs such as a costed bill-of-materials (BOM), compelling 3D visualizations and sales drawings. Reduce overall order lead time and engineering costs by automating repetitive design tasks involved in the order engineering process.

Offers

Free 3D Design Software

Free software for your startup

Early-stage startups in business for less than three years can apply to get Solid Edge for free. No application fee!

Download Free Solid Edge for Students

Build the skills you need with Solid Edge Student Edition software—a free version of the same easy-to-use software suite used by professionals.

Video

See the solution in action

Use rule-based automation to generate new designs based on design parameters and rules.
